Flock Oil Pressure 52mm Gauge
$335.00
Skip to product information
Flock Oil Pressure 52mm Gauge
$335.00
Monitor engine oil pressure with the Flock 52mm digital oil pressure gauge and included 1/8 NPT pressure sensor. The sensor wires directly to the display, so this bundle does not require OBD-II or factory ECU data.
What’s included
- 1 × Flock 52mm Gauge

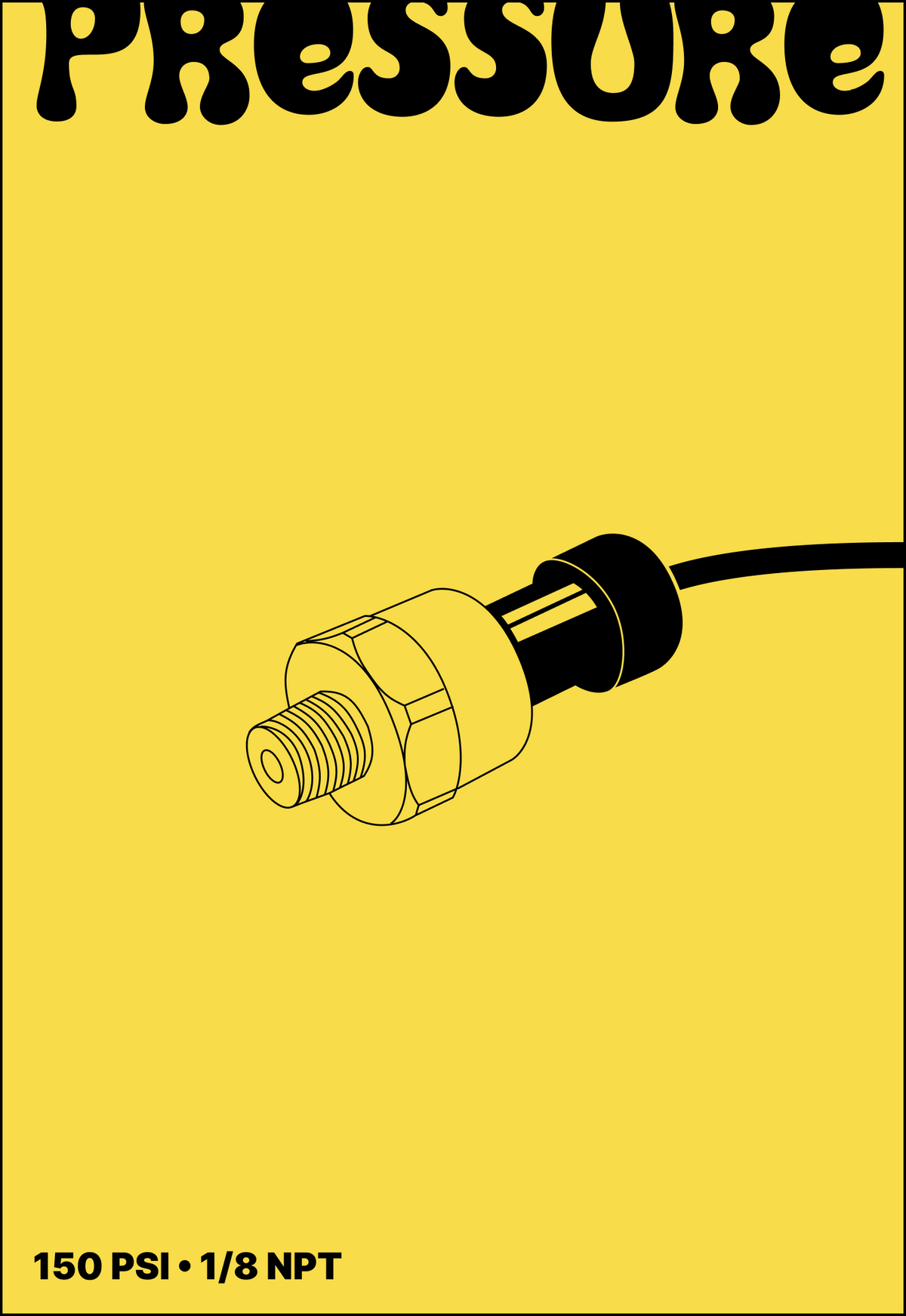

- 1 × Flock pressure sensor with connection harness
Oil Pressure gauge specifications
| Measurement | Oil pressure |
|---|---|
| Sensor range | 0–150 psi; do not exceed 150 psi |
| Sensor thread | 1/8 NPT |
| Gauge size | 52mm |
| Sensor connection | Independent sensor wired directly to the gauge |
| Included sensors | One sensor with connection harness |
| Expansion | Up to four independent sensors and four readings at once |
| Display styles | Digital readout or analog-style gauge face |
| Alerts | Adjustable warning thresholds with visual and audible alerts |
Customize your display and expand your setup
Choose a digital readout or analog-style face. Upload a 240 × 240 JPG background, or customize the analog background and needle. Set warning thresholds with visual and audible alerts.
Start with the included pressure sensor, then add compatible sensors as your setup grows. One 52mm display can show up to four readings without adding another gauge. Additional Flock sensors and adapters are sold separately.
Plan your oil pressure gauge installation
Check your engine’s oil-pressure port, the required thread adapter and clearance before ordering. Use the vehicle and sensor installation instructions to choose a suitable location. Vehicle-specific fittings and installation parts are sold separately.
Review the Flock Gauge user manual and car setup guides before ordering. For setup help, email hello@flock-mfg.com with your year, make, model, engine and planned sensor location.
Oil Pressure gauge questions
What pressure range does the sensor measure?
The included pressure sensor measures 0–150 psi. Do not exceed its 150 psi limit.
Will it fit my engine’s oil-pressure port?
The included sensor uses a 1/8 NPT thread. Confirm your engine’s port thread, clearance and any required adapter before ordering. Vehicle-specific adapters are sold separately.
Does this bundle require OBD-II?
No. The included independent sensor wires directly to the gauge; an OBD-II adapter is not required or included.
Can I add other sensor readings later?
Yes. Connect up to four compatible independent sensors and display up to four readings at once. This bundle includes one sensor. Additional sensors and installation adapters are sold separately.
What can I customize?
Choose a digital readout or analog-style face, upload a 240 × 240 JPG background, customize the analog background and needle, and set your own warning thresholds.
Other independent sensor bundles
- 52mm coolant temperature gauge with sensor
- 52mm oil temperature gauge with sensor
- 52mm fuel pressure gauge with sensor
- 52mm boost gauge with sensor
For off-road use only.
