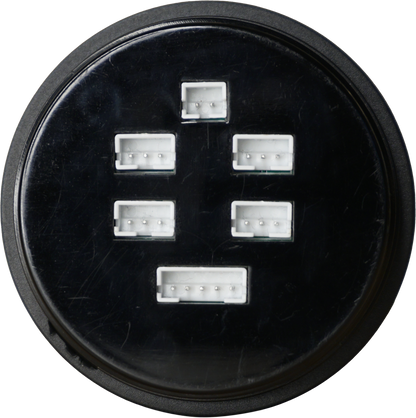

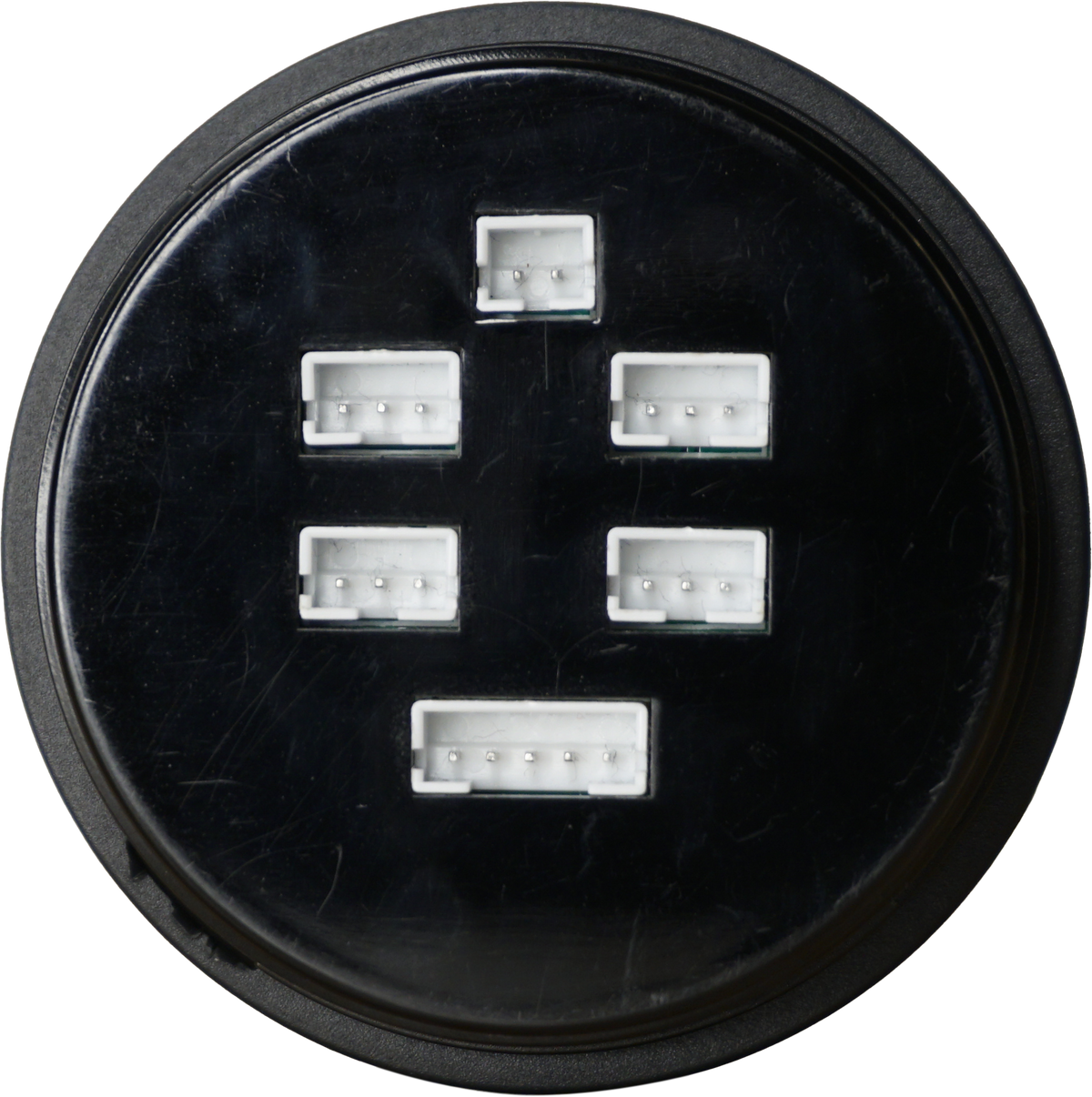

Flock 52mm Digital Multi-Sensor Gauge

Flock 52mm Digital Multi-Sensor Gauge

$300.00
Skip to product information
Flock 52mm Digital Multi-Sensor Gauge
  • Flock 52mm Digital Multi-Sensor Gauge
  • Flock 52mm Digital Multi-Sensor Gauge
  • Flock 52mm Digital Multi-Sensor Gauge
  • Flock 52mm Digital Multi-Sensor Gauge
  • Flock 52mm Digital Multi-Sensor Gauge
  • Flock 52mm Digital Multi-Sensor Gauge
  • Flock 52mm Digital Multi-Sensor Gauge
  • Flock 52mm Digital Multi-Sensor Gauge
  • Flock 52mm Digital Multi-Sensor Gauge
  • Flock 52mm Digital Multi-Sensor Gauge
Flock 52mm Digital Multi-Sensor Gauge

Flock 52mm Digital Multi-Sensor Gauge

$335.00
Sensor (Style)
(25)
Flock 52mm Gauge (Gauge Only) $300.00

The Flock Gauge is a customizable 52mm digital multi-sensor gauge. Choose your sensor setup, make your own gauge face, and display up to four readings in one spot.

Use independent sensors wired directly to the gauge, or the Flock OBD-II adapter to read available ECU data on supported stock CAN-bus vehicles. Check your vehicle, protocol and the readings you want before choosing an OBD-II setup.

Choose your setup

Select a Sensor (Style) above to see the current price for your gauge configuration:

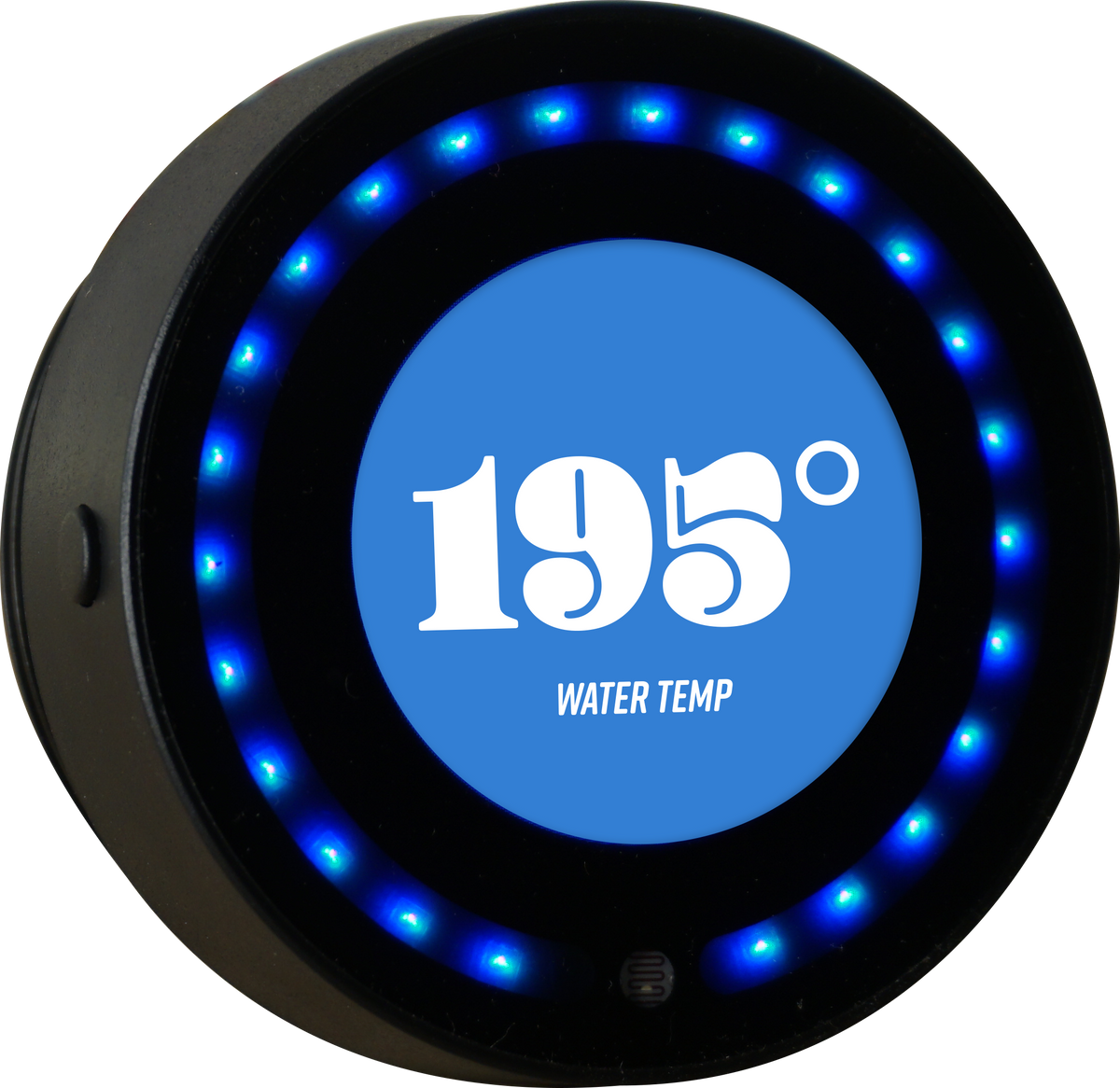

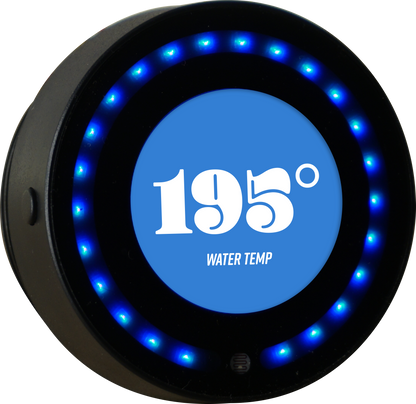

  • Water/Oil Temp: for coolant or oil temperature using a temperature sensor.
  • Pressure Sensor: for pressure readings using a pressure sensor.
  • Boost: for boost readings using a sensor connected to a suitable vacuum line.
  • Custom Sensor Harness: a harness option for connecting your own compatible sensor with a linear 0–5V output.
  • OBDII: an adapter option for reading data supplied by a supported vehicle's ECU. Available readings depend on the vehicle.

Choose the option that matches your first reading. Additional sensors and adapter options are available separately if you want to expand your setup.

Main features

  • Custom backgrounds: upload a 240 × 240 JPG image, or create your own analog background and needle.

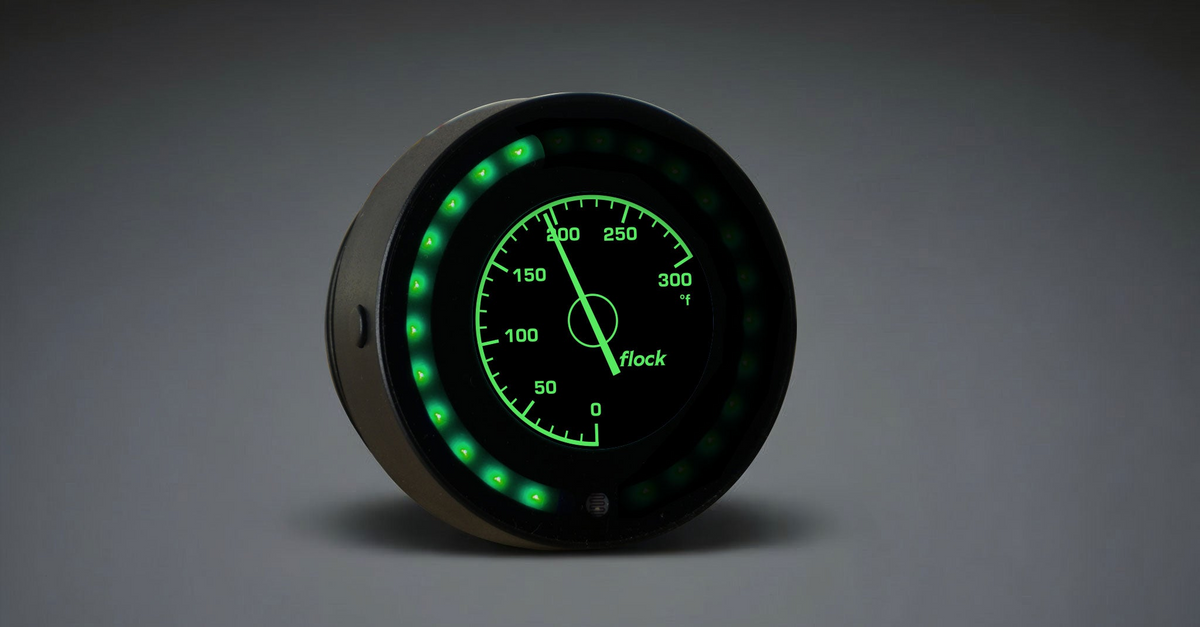

  • Analog or digital gauge face: choose the look that fits your dash.

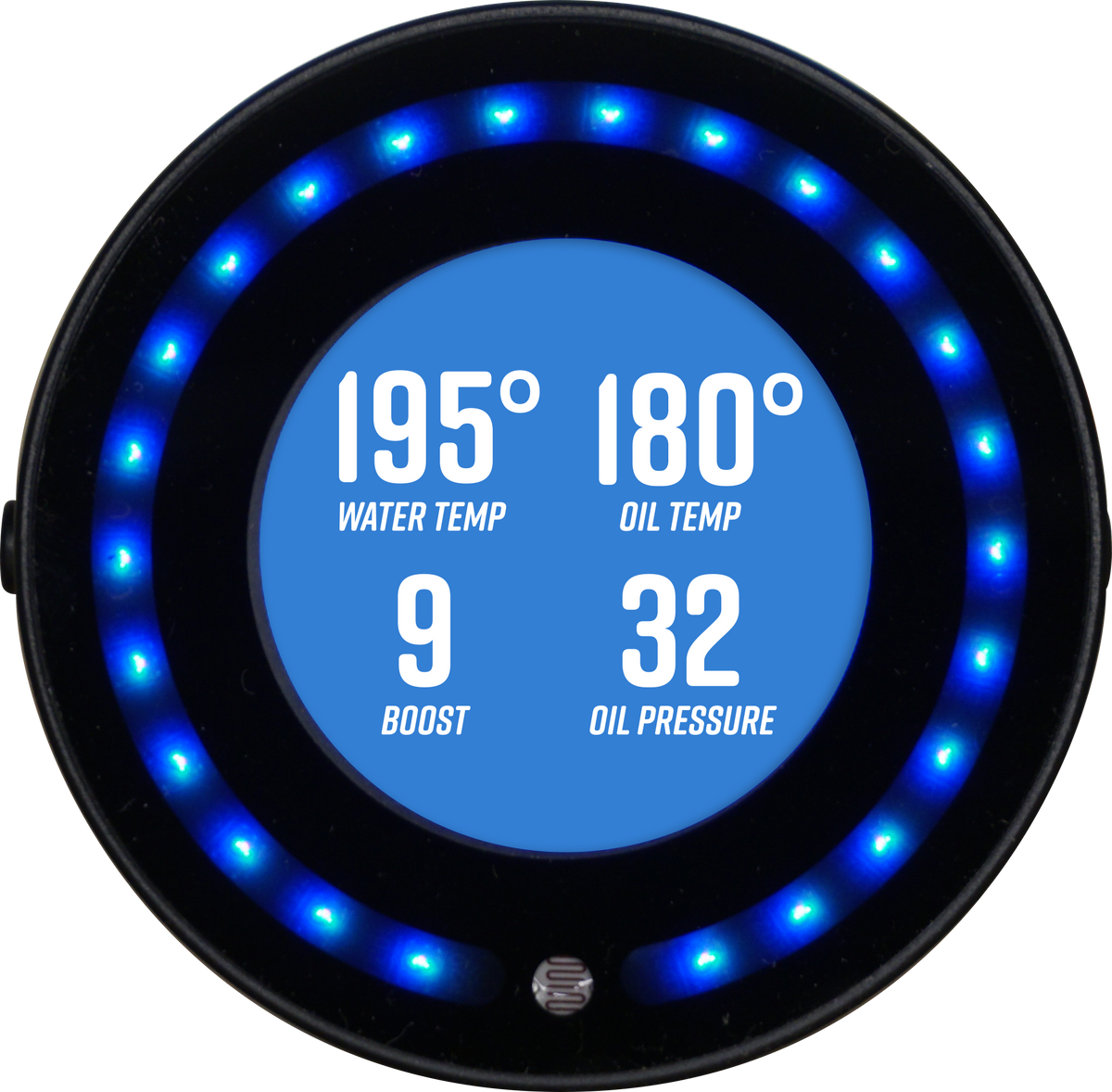

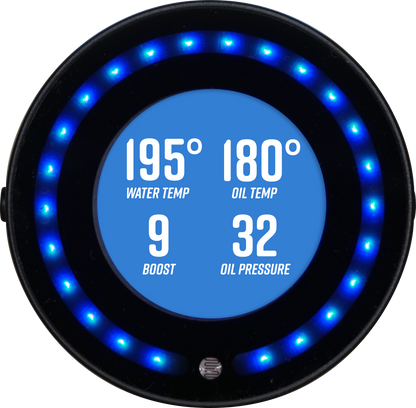

  • Multi-sensor support: connect up to four independent sensors to one gauge and display up to four readings at once.
  • High-temperature warnings: change the background image or color, turn the LEDs red and sound the buzzer when the warning threshold is reached.
  • OBD-II support: use the Flock OBD-II adapter with a supported vehicle.
  • Game Boy Advance support: connect a Game Boy Advance using the GBA adapter, sold separately.

Before you order

Do I need adapters to install the sensors?

The Flock temperature and pressure sensors use 1/8 NPT threads. Check the correct sensor location, thread adapter and clearance for your vehicle. The boost sensor uses a vacuum-line connection. Vehicle-specific installation parts depend on your setup; review the user manual and car setup guides before ordering.

Can I use my own sensor?

The custom sensor harness supports compatible sensors with a linear 0–5V output. Check the sensor's wiring and output specification against the custom sensor wiring guide. Do not assume every factory sensor can connect directly to the gauge.

Is the aftermarket ECU CANbus adapter available now?

The separate CANbus adapter for aftermarket ECUs is still in final hardware testing and is not yet released. It is different from the current OBD-II adapter for supported stock CAN-bus vehicles. The CAN bus setup guide explains the planned setup; a published guide does not mean the adapter is available to buy.

Not sure which setup you need? Email hello@flock-mfg.com with your year, make, model, engine, ECU and the readings you want.

If you need a retaining nut, you can download an STL or purchase one from Draklore.

Additional sensors

Shop additional sensors and adapters

Additional Flock sensor options

For off-road use only.

Made with care

Great value

Elegant design

Quality materials

Details

This product is crafted with quality materials to ensure durability and performance. Designed with your convenience in mind, it seamlessly fits into your everyday life.
Shipping & Returns

We strive to process and ship all orders in a timely manner, working diligently to ensure that your items are on their way to you as soon as possible.

We are committed to ensuring a positive shopping experience for all our customers. If for any reason you wish to return an item, we invite you to reach out to our team for assistance, and we will evaluate every return request with care and consideration.

Shop The Full Collection

Die cut logo sticker handdrawn

Die cut logo sticker handdrawn

Die cut logo sticker handdrawn
$5.00
Egg Driving Shirt back with purple S15 and egg driver graphic on a warm neutral background
Sale

Egg Driving Shirt

Egg Driving Shirt
$10.00 $45.00
Egg Origin Shirt back with egg riding in a kei car graphic on a warm neutral background
Sale

Egg Origin Shirt

Egg Origin Shirt
$10.00 $45.00
Extra Sensors

Extra Sensors

Extra Sensors
$35.00
  • 5 stars: 25 (100%)
  • 4 stars: 0 (0%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
Some of the reviews shown are from the products included in this bundle.
R
Robert R

I’m still learning this gauge as there is a lot to it. I absolutely love it! The quality is great, and it is so capable and customizable.

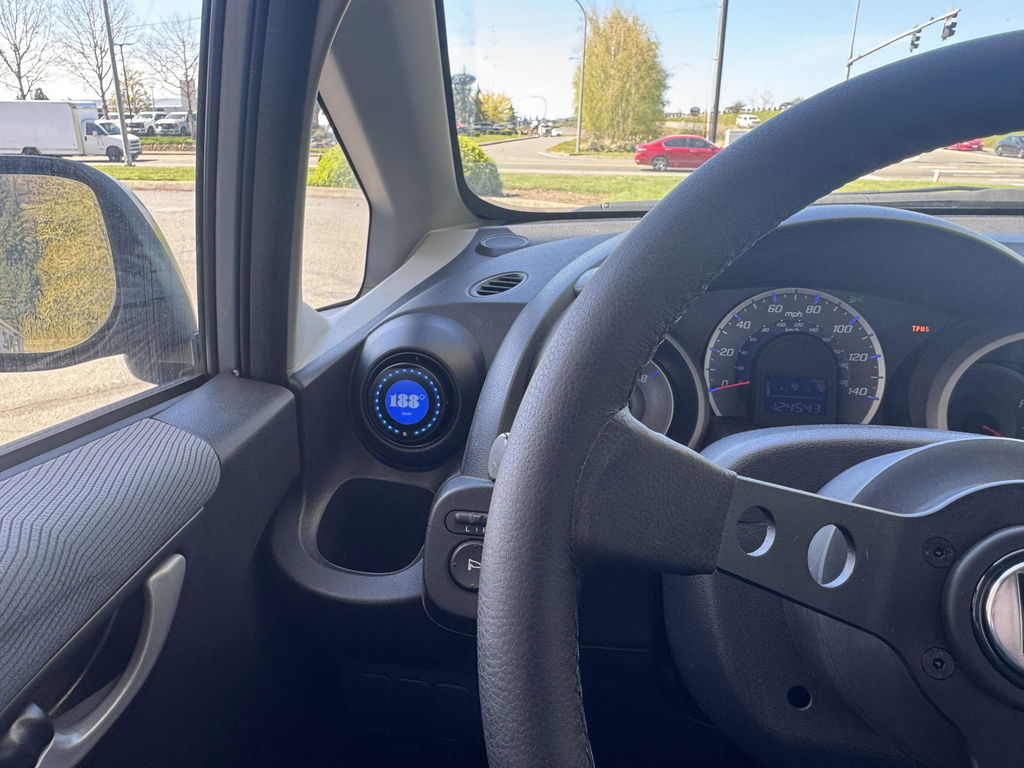

Robert R review photo
R
Rob Eiffert

Works great! My car did not come with a coolant temperature gauge and this fills that void perfectly.

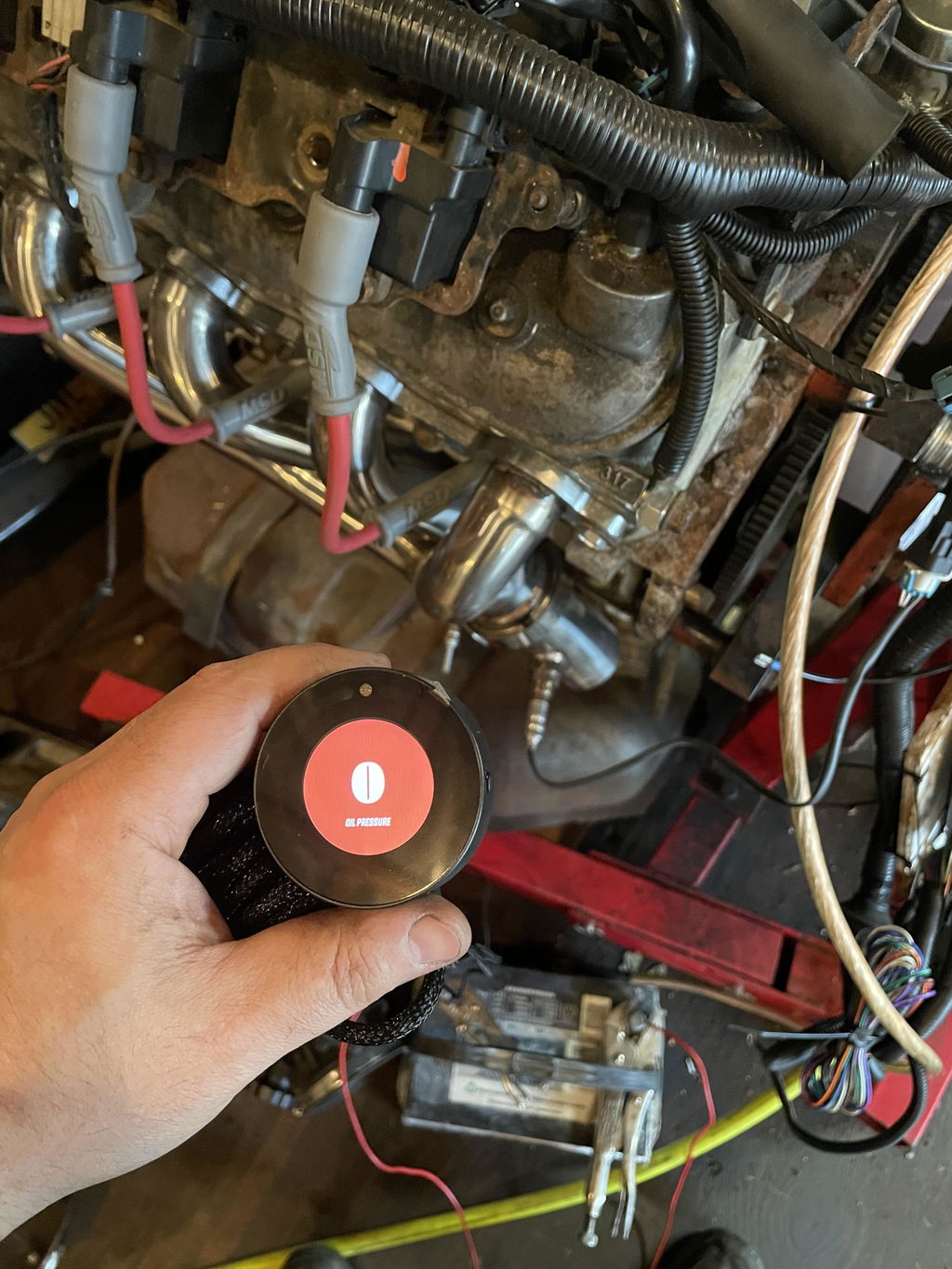

Rob Eiffert review photo
B
Brad Marsh

Great gauge and support. Only complaint is at the time I received it I had to use my wifes phone to set it up as she has Apple and I have an Android

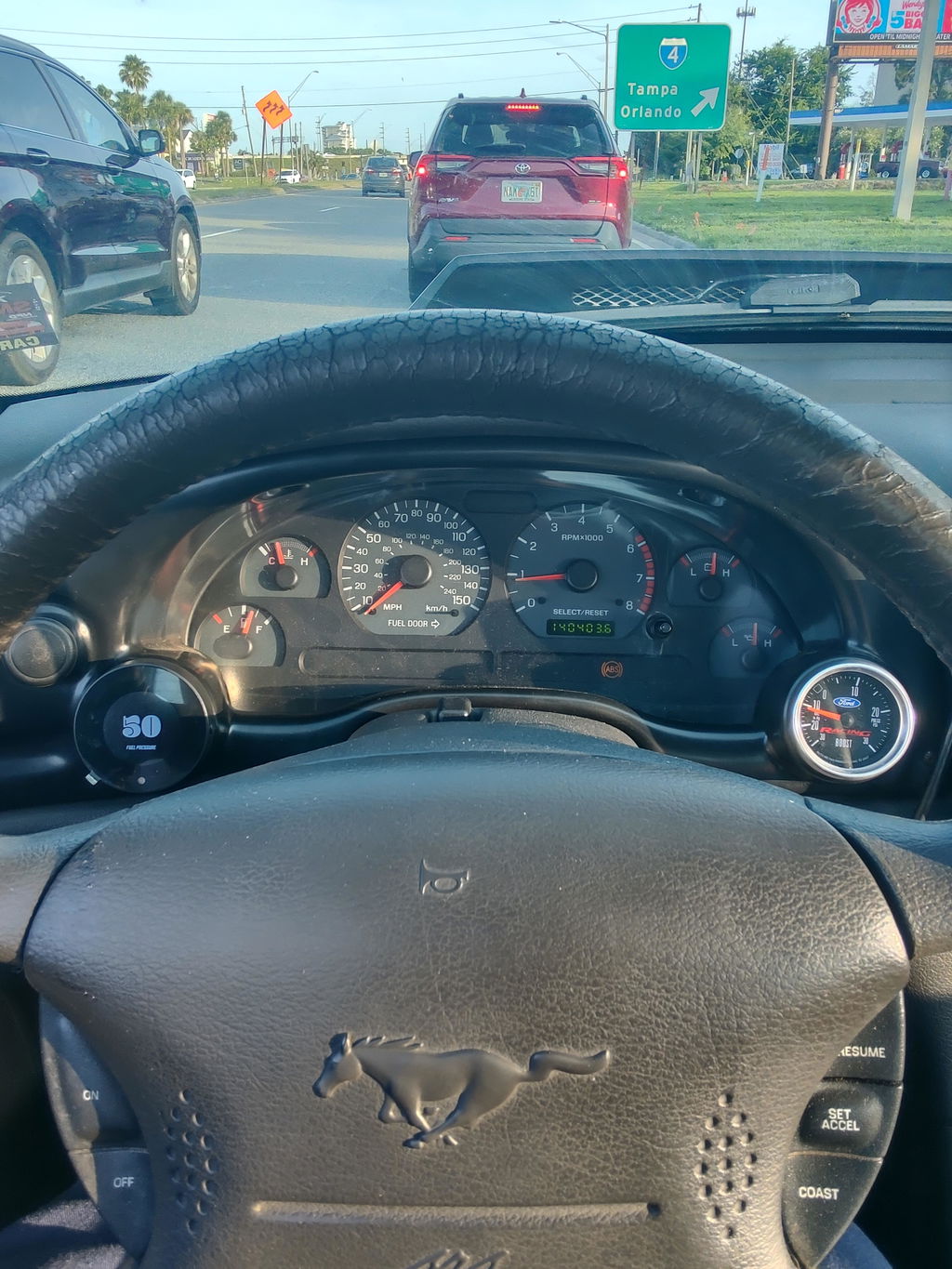

Brad Marsh review photo
